Document File Template - Introduction

For converting data to document files such as MS Word .docx, you can use the WvDocumentFileTemplate processor.

This example is also available in a GitHub repository so you can review it in details.

Template - Document file

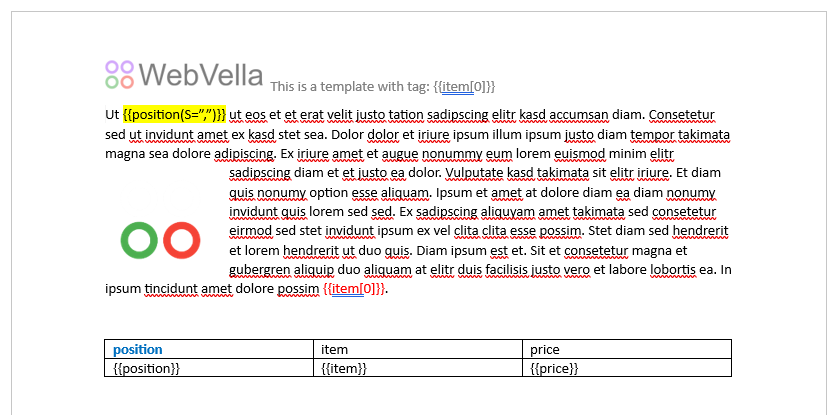

The goal is to process a template MS Word file "TemplateDoc1.docx" with a DataTable. The template file is always processed from top to bottom.

Processing the template

There are two helper methods LoadFileAsStream and SaveFileFromStream which are not displayed here, but if you are interested in their contents, check out the Github Repository.

The test code is:

using System.Data;
using WebVella.DocumentTemplates.Engines.DocumentFile;

namespace WebVella.DocumentTemplates.WordExample;

internal class Program
{
	static void Main(string[] args)
	{
		var templateFile = "TemplateDoc1.docx";
		var ds = new DataTable();
		ds.Columns.Add("position", typeof(int));
		ds.Columns.Add("sku", typeof(string));
		ds.Columns.Add("item", typeof(string));
		ds.Columns.Add("price", typeof(decimal));

		for (int i = 1; i < 6; i++)
		{
			var dsrow = ds.NewRow();
			dsrow["position"] = i;
			dsrow["sku"] = $"SKU{i}";
			dsrow["item"] = $"item {i} description text";
			dsrow["price"] = i * (decimal)0.98;
			ds.Rows.Add(dsrow);
		}

		var template = new WvDocumentFileTemplate
		{
			Template = new Utils().LoadFileAsStream(templateFile)
		};
		WvDocumentFileTemplateProcessResult? result = template.Process(ds);

		new Utils().SaveFileFromStream(result.ResultItems[0].Result!, $"result-{templateFile}");
	}
}

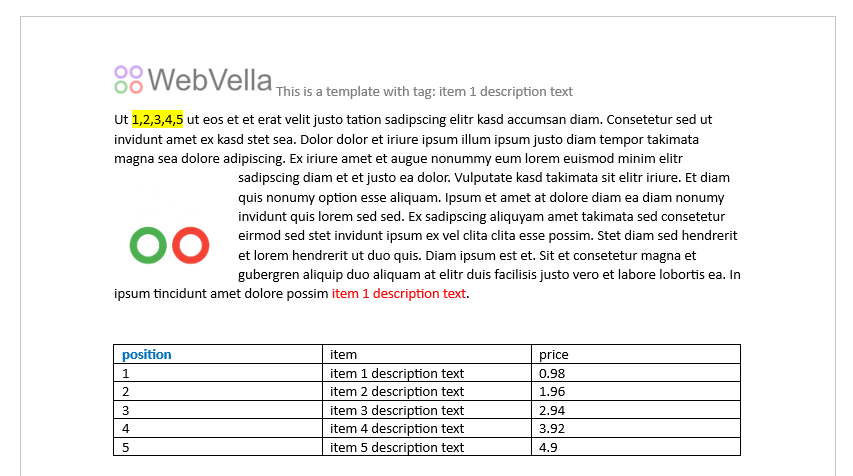

The result

Take notice to:

• image, image positioning and text styling are migrated from the template
• headers and footers are processed also. Images are migrated properly.
• the table is migrated and expanded vertically (by default) and new additional rows were created
• table borders and styling is migrated from the template
